Project Snapshot
Project type: Commercial facility
Location: United Kingdom
Client type: Contractor
Structural system: Structural steel secondary framing
Software: Tekla TSD, Ideastatica, Navisworks, SAP2000

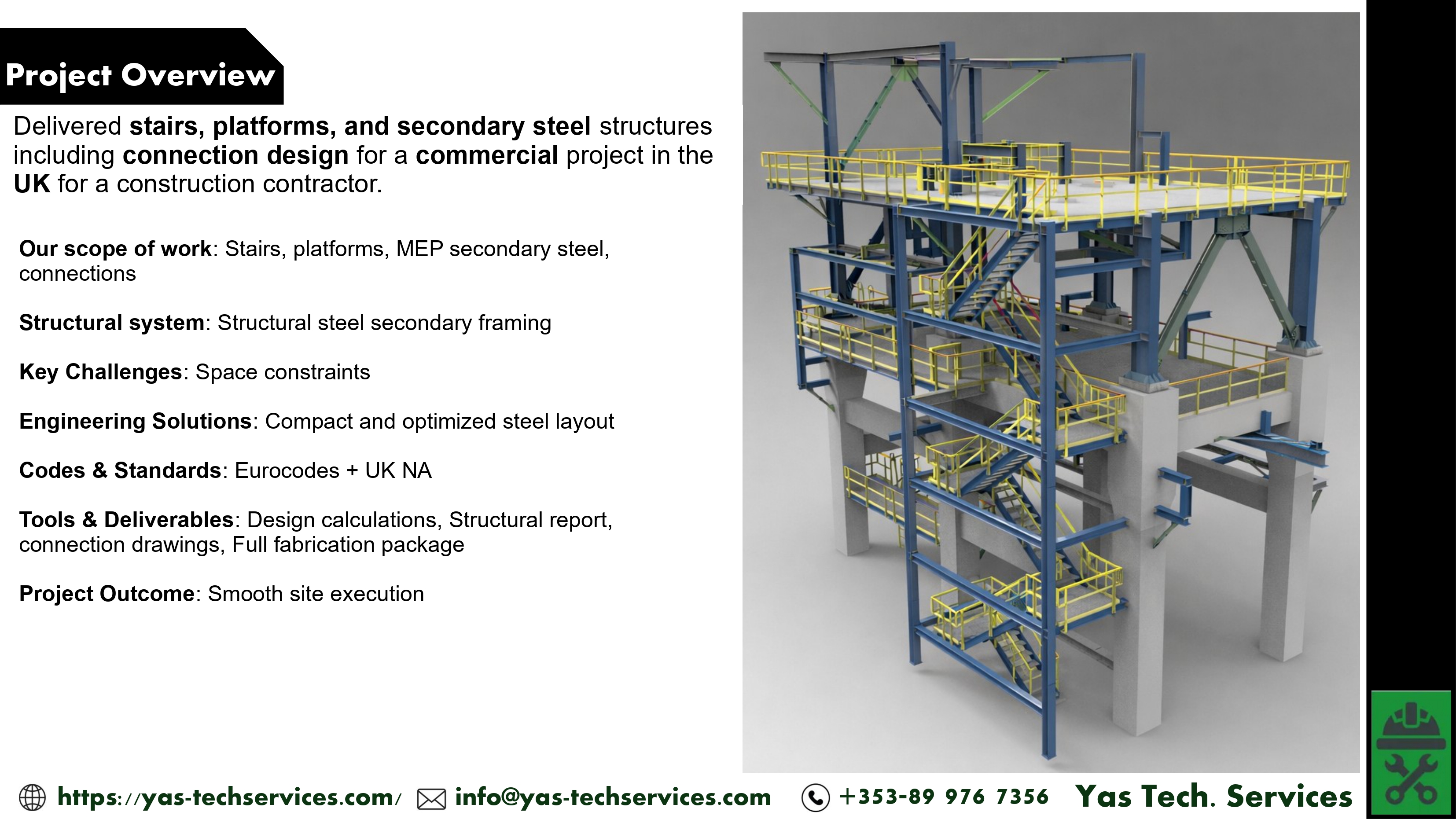

Scope of work: Design of stairs, platforms, and MEP secondary steel, Connection design, Engineering calculations and drawings
The Challenge
- The project involved tight spatial constraints, particularly around MEP services and access routes.
- Secondary steel elements needed to be integrated without impacting usable space or architectural intent.
- Installation sequencing was critical to avoid clashes and rework on site.
- The contractor required a compact, well-coordinated design that could be installed efficiently.
Our Engineering Approach
- We developed an optimized secondary steel layout, carefully fitting stairs, platforms, and supports within restricted zones.
- Structural members were sized efficiently to meet load requirements while minimizing steel tonnage.

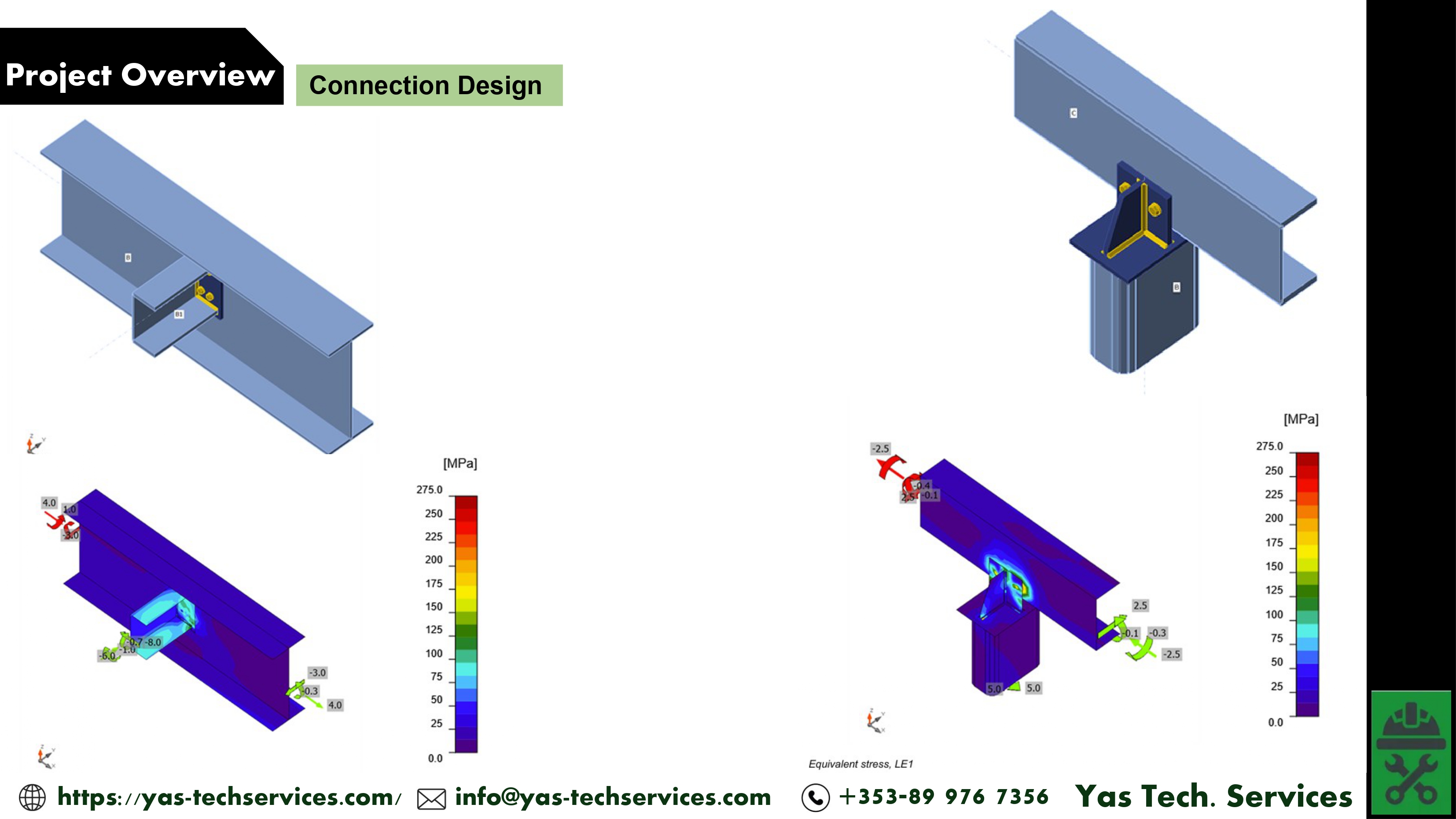

- Connection details were designed to simplify fabrication and on-site installation.
- Coordination considerations were embedded early to reduce downstream clashes.
- All engineering was carried out in accordance with Eurocodes and UK National Annex requirements.
Tools and Deliverables

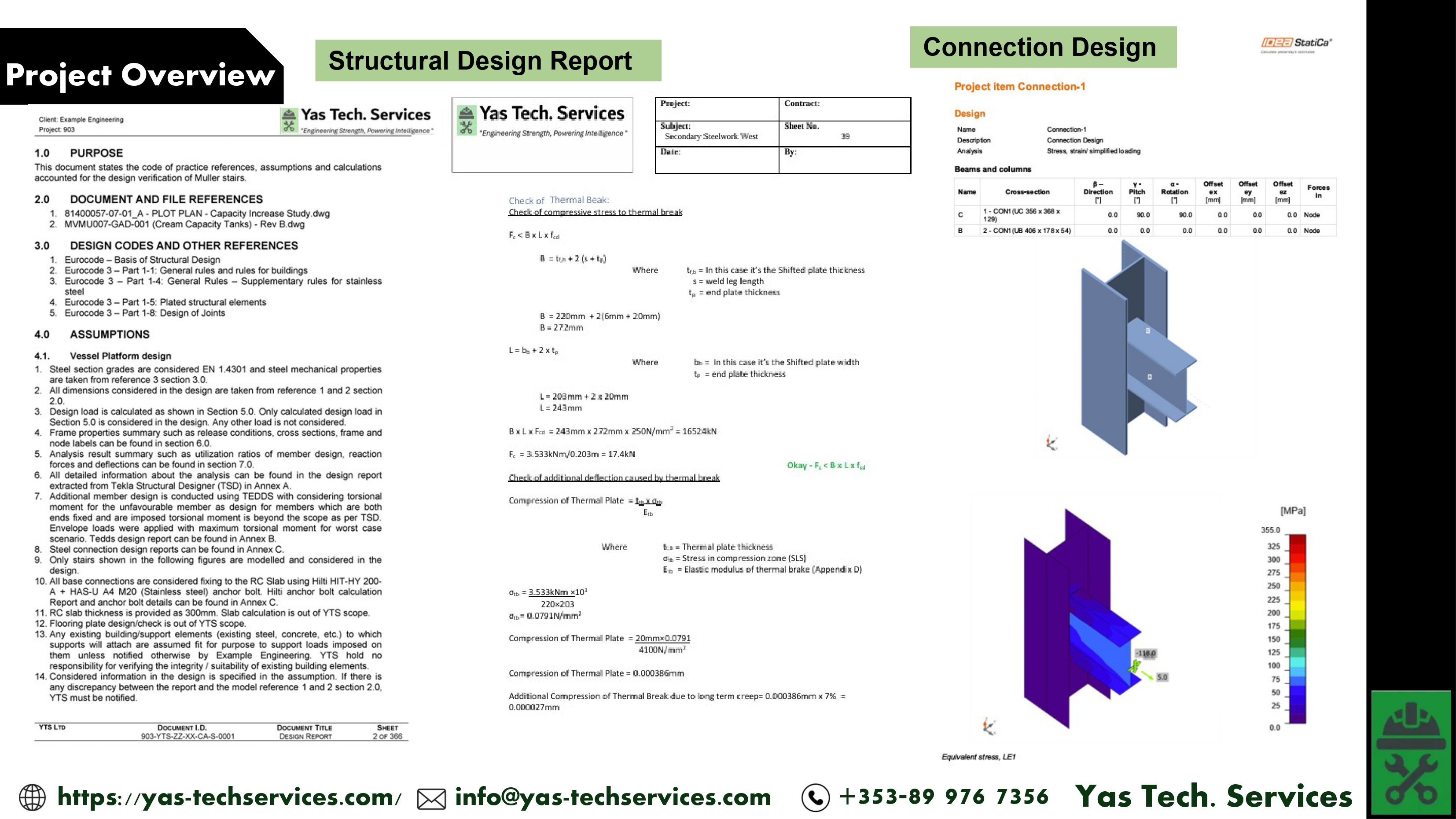

- Structural engineering calculations for secondary steel elements.

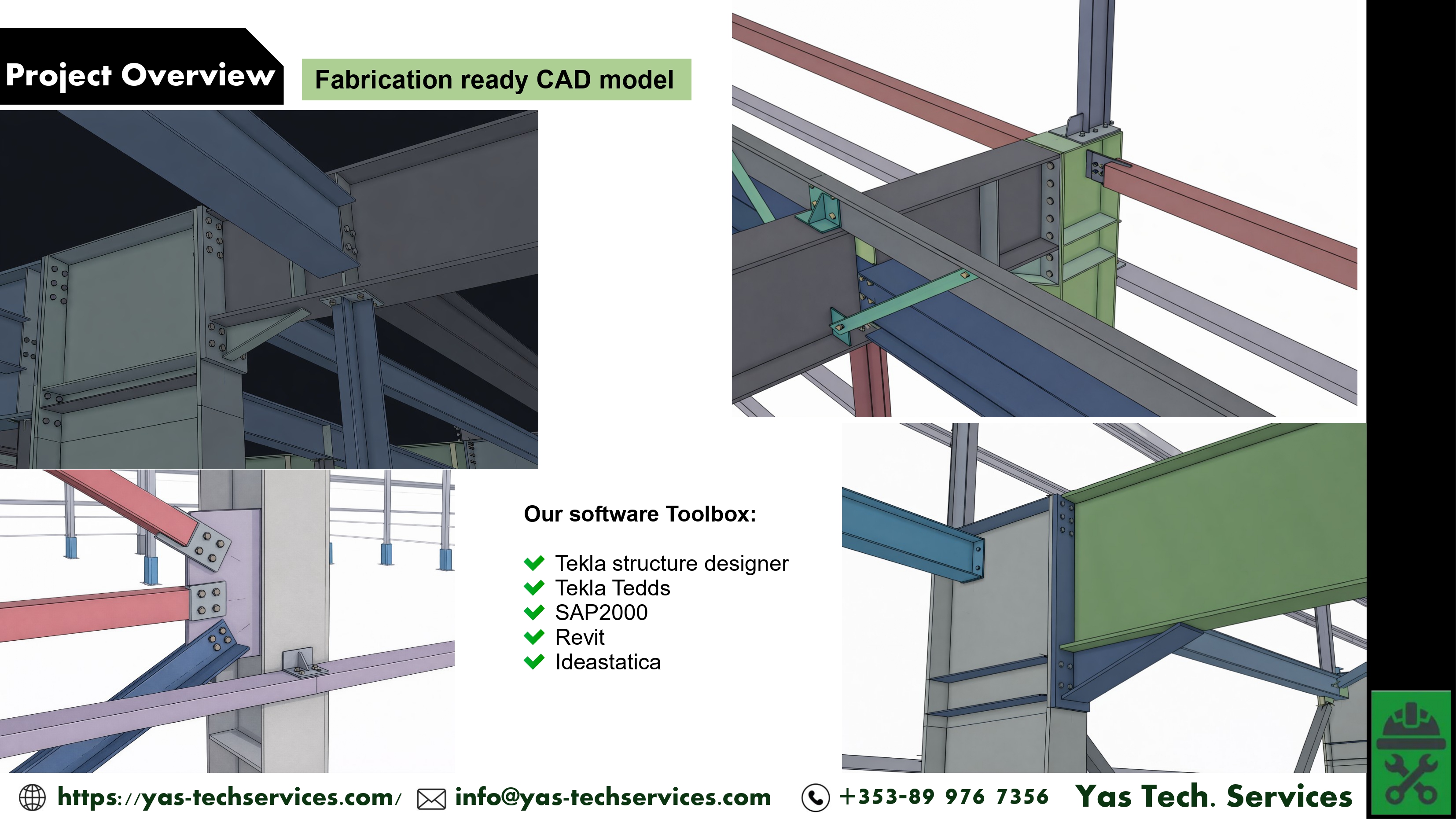

- Detailed design and connection drawings suitable for fabrication and site execution.
- Clear coordination information to support installation planning.
Results & Value Delivered
- Delivered a compact and buildable secondary steel design.
- Reduced on-site coordination issues through clear detailing.
- Supported smooth and efficient installation.
- Enabled timely site execution without layout conflicts.
Value to the Client
- Delivered contractor-focused structural design support.
- Reduced installation and coordination risk.
- Provided practical, buildable engineering solutions.
- Demonstrated strong experience in UK commercial secondary steel design.
