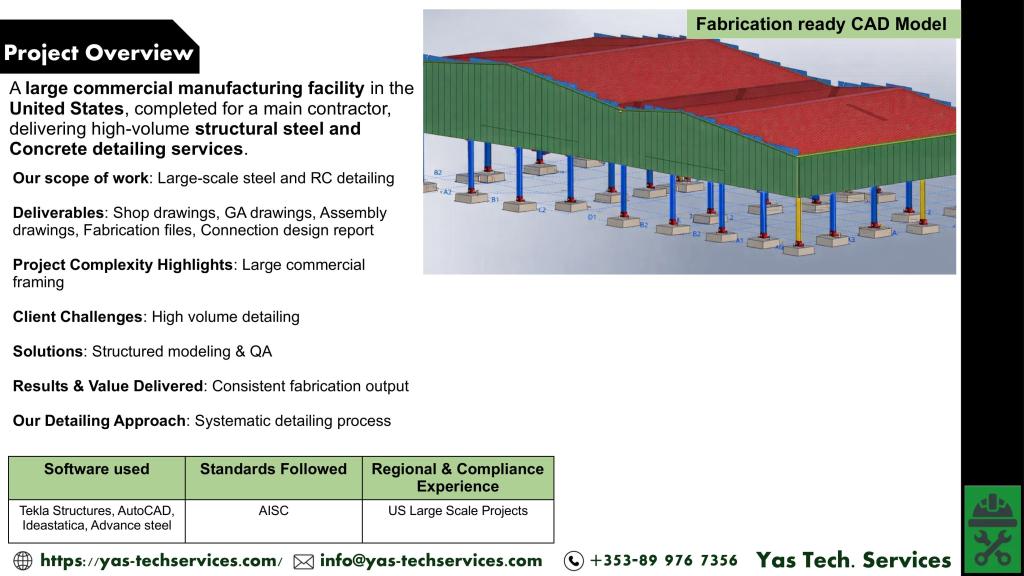

Project Snapshot
Project type: Commercial manufacturing facility
Location: USA
Project scale: Large
Client type: Main Contractor
Project status: Completed
Software: Tekla Structures, AutoCAD, Ideastatica
Scope of work: Large-scale structural steel and RC detailing
The Challenge
- The project involved high volumes of structural steel, requiring consistent and repeatable detailing.
- Tight programme requirements demanded steady drawing output without compromising quality.
- Inconsistent detailing could disrupt fabrication flow and site sequencing.
- The contractor required a detailing partner capable of managing scale without loss of control.
Our Detailing Approach
- We implemented a systematic detailing process, focusing on repeatable modelling standards and connection logic.

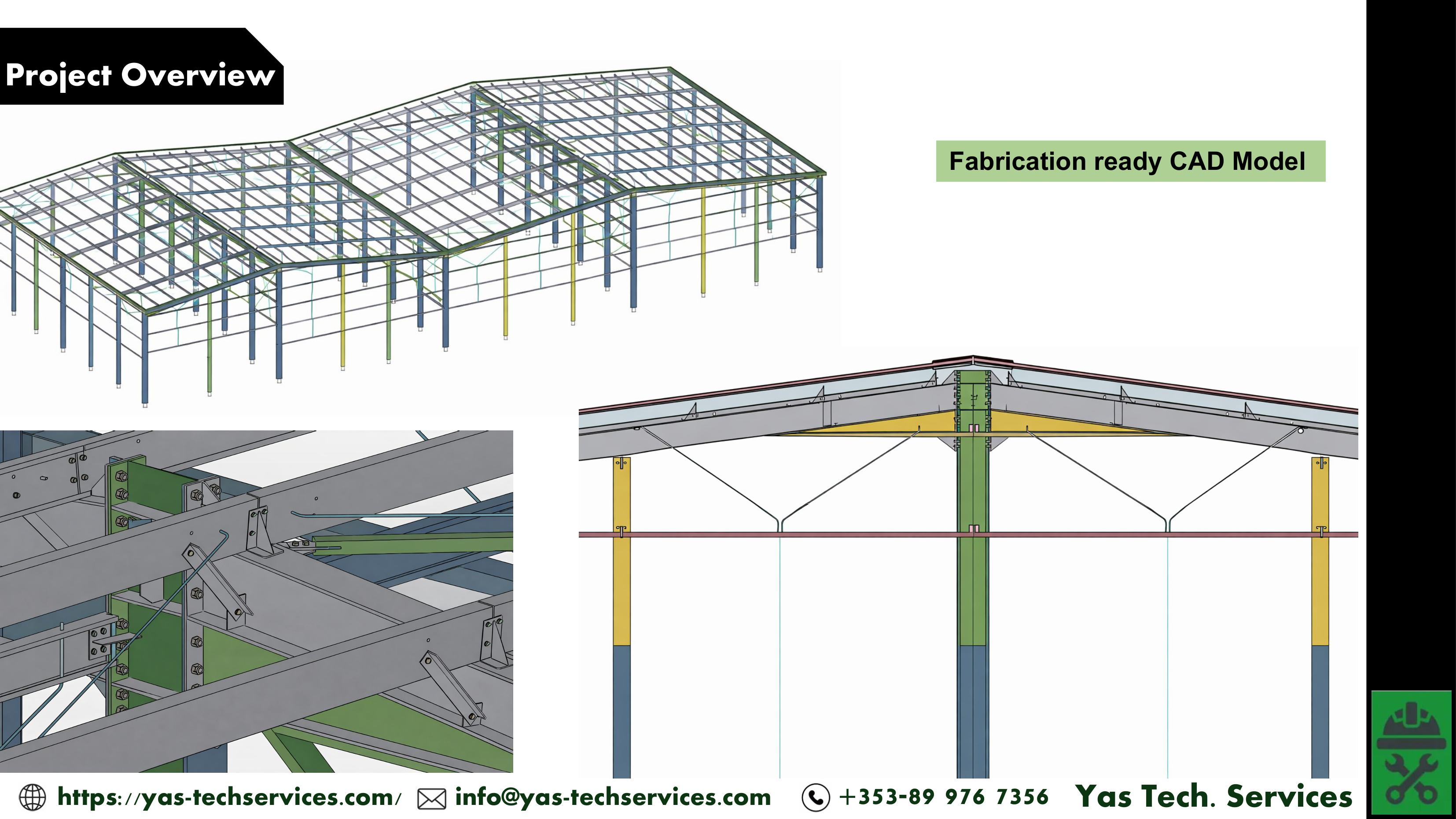

- Tekla models were structured to support high-volume output while maintaining clarity and accuracy.
- QA/QC checkpoints were embedded into the detailing workflow to ensure consistency across drawing packages.
- Drawing releases were planned to support continuous fabrication and erection.
- All detailing was delivered in accordance with AISC standards and US construction practices.
Deliverables

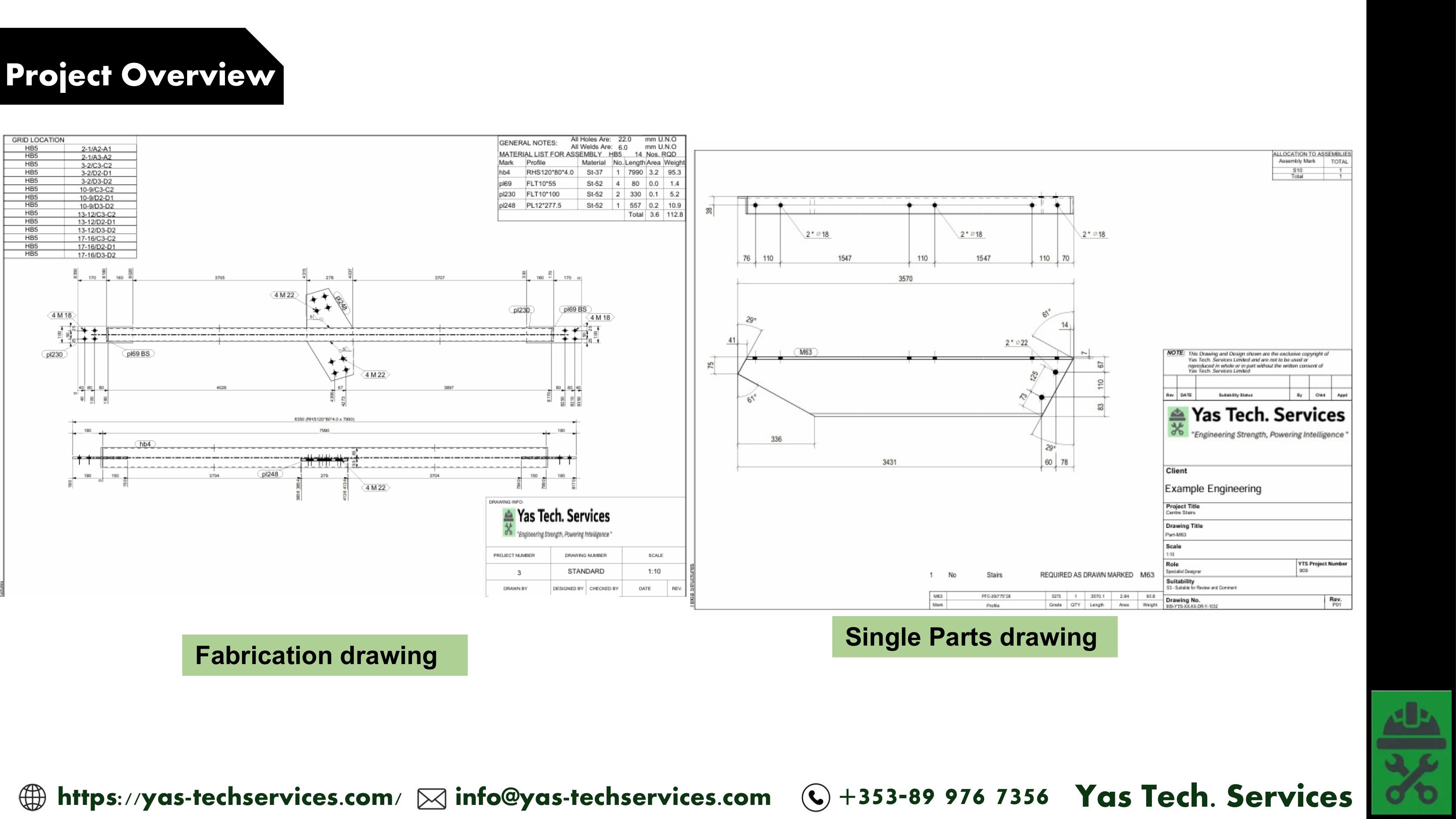

- Fabrication-ready shop drawings.

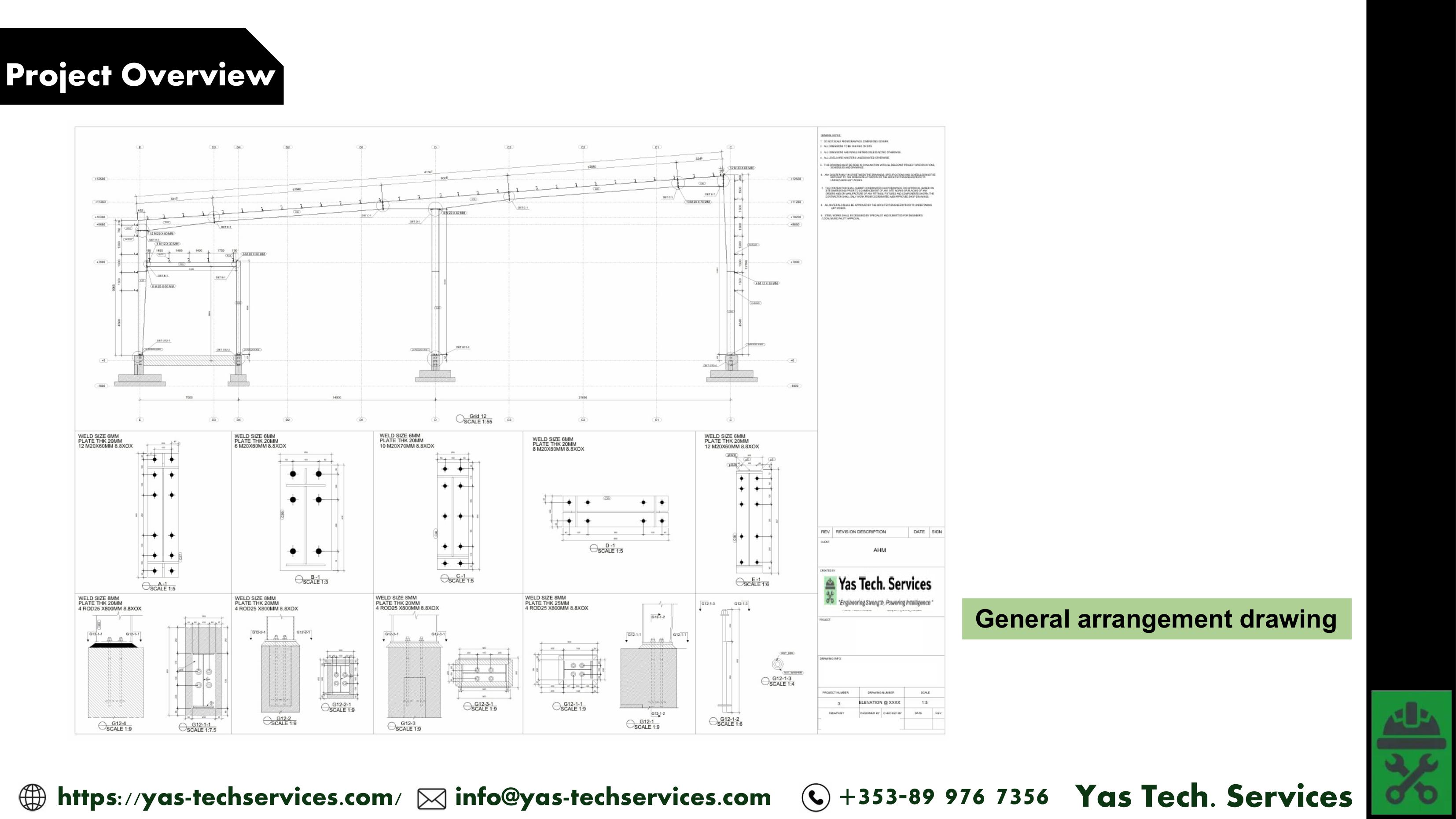

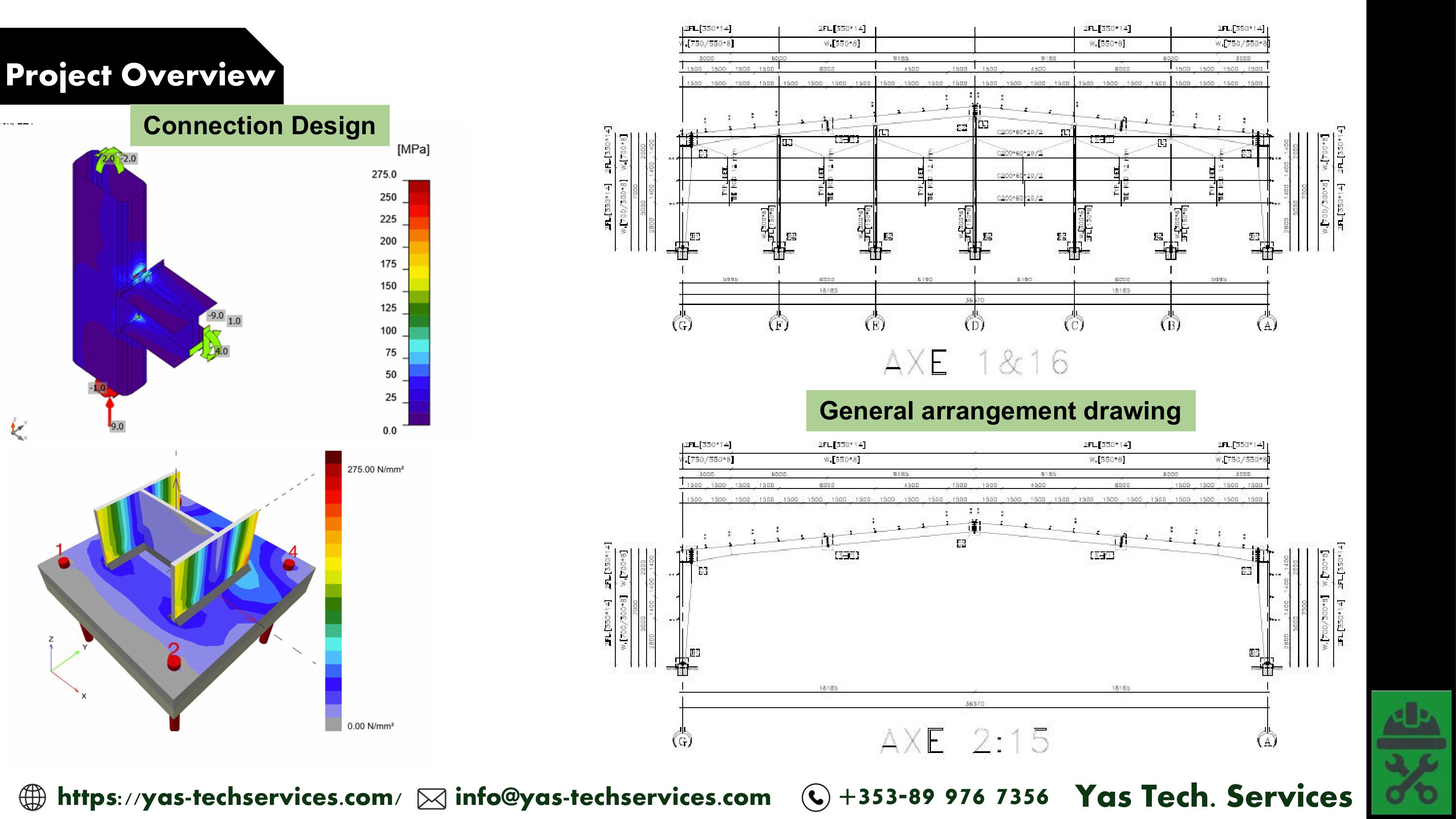

- Coordinated GA drawings.
- Assembly drawings supporting erection sequencing.
- Fabrication files aligned with high-volume shop production.
Results & Value Delivered
- Delivered consistent detailing outputs across a large steel package.
- Supported uninterrupted fabrication through reliable drawing quality.
- Reduced rework and clarification queries.
- Enabled steady site progress on a large commercial project.
Value to the Client
- Delivered scalable steel detailing capability for a large-volume project.
- Reduced fabrication risk through standardized detailing.
- Improved predictability in shop and site operations.
- Demonstrated strong experience in large-scale US commercial steel projects.
